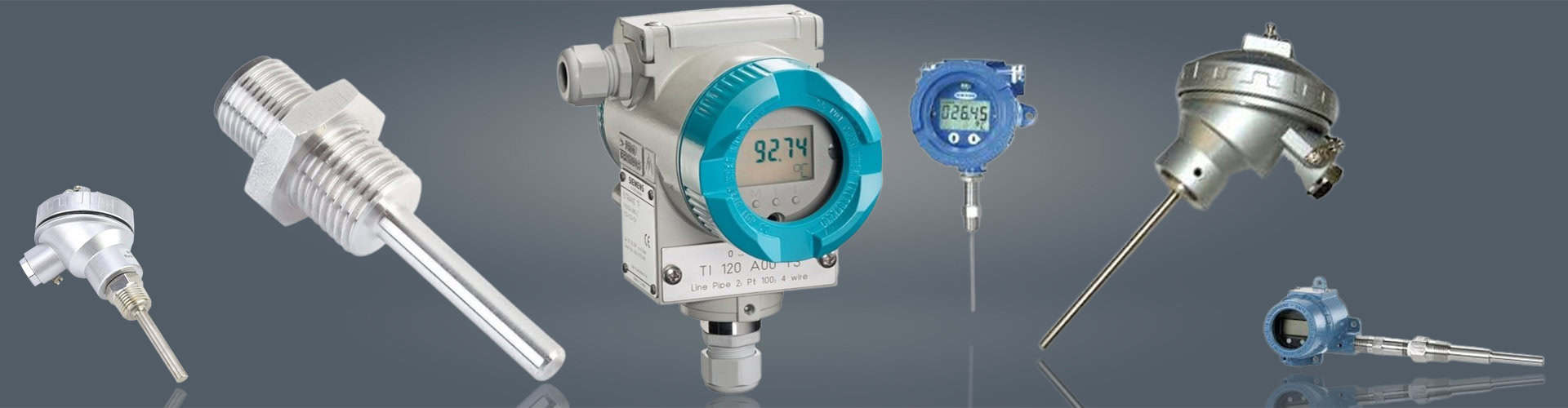

Temperature sensors

PT 100 SENSOR

The RTD PT 100 sensor used to measures temperature for various purpose . it is suitable for high accuracy temperature measurement. For a wide range of controllers equipped with Pt 100 sensor input.

  • Type: 3-wire PT100.
  • Range: -20 to +250 ºC.
  • Output: 100 Ohm at 0 ºC.
  • Conection: G1/2″.
  • Well: stainless steel AISI-316 / diameter: 6 or 8 mm / length until 100 mm
  • Head: DIN B.
  • Vara: acero inox. AISI-316 /
  • Cabezal: DIN B

INSERTED TEMPERATURE TRANSMITTER

RTD PT 100 sensor Temperature transmitter adopt special temperature module. It can provide standard analog signal and all kinds of thermal resistance.

  • Measuring media: liquid, gas
  • Measuring range: -50-300 ℃
  • Power supply range: 9 ~ 36VDC
  • Output signal: 4 ~ 20mA, 0-5VDC, 0-10VDC, RS485
  • Probe material: stainless steel 304
  • Accuracy class: ± 0.5 ℃
  • Ambient temperature: -40 ~ 85 ℃
  • Stability: ± 0.1% FS / Year
  • Protection: IP65
